This page describes the main features for the e2 studio 2021-07 application.
For features which are specific for the device families use the buttons to navigate below:
Updated CDT and Eclipse Platform
1 / 4

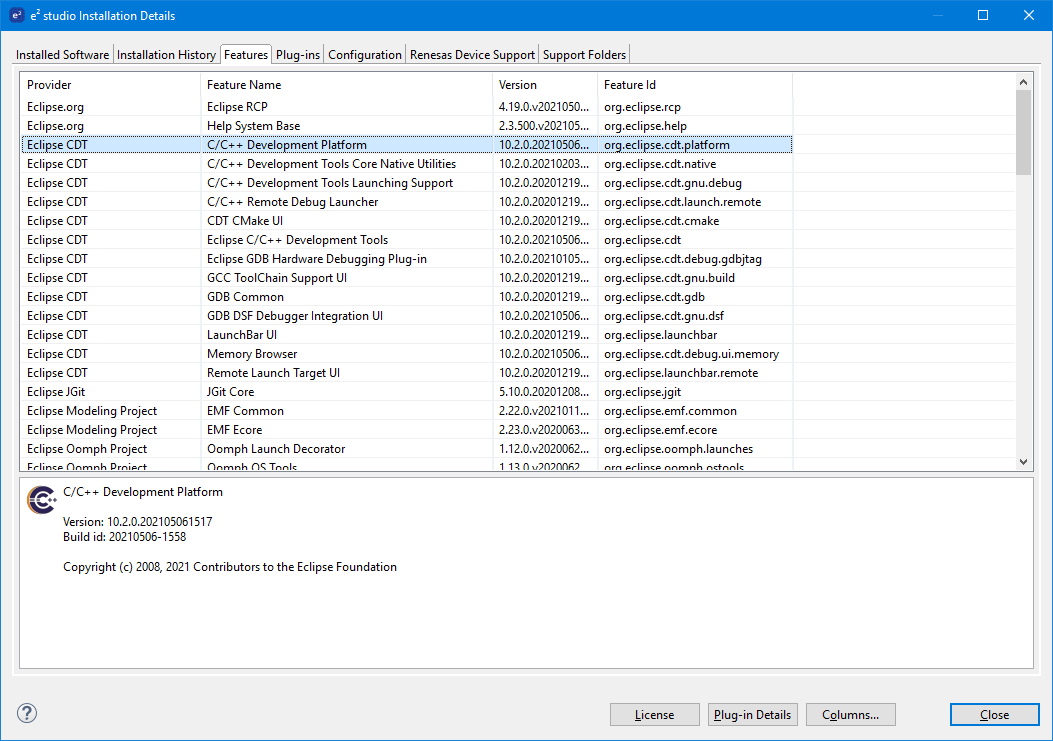

Updated CDT and Eclipse Platform
The Eclipse platform for e2 studio has been updated to 2021-03. CDT has also been upgraded to 10.2.
The main improvements for CDT relate to headless build and the Terminal window.
Link to new and noteworthy - CDT
�
Improve Coverage view to show coverage result for each function
2 / 4

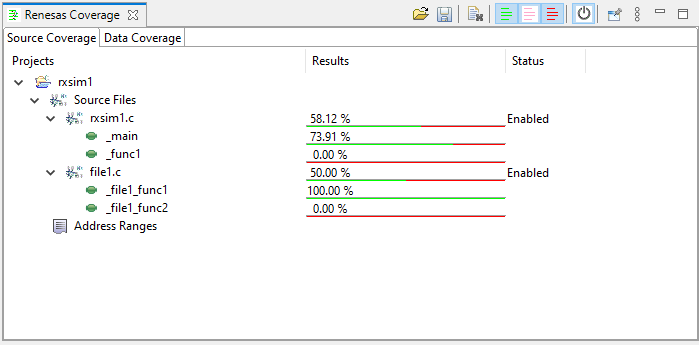

Improve Coverage view to show coverage result for each function
Coverage plugin can now show the coverage result for each function within your source files.
Improve Coverage view to show coverage result for .asm file
3 / 4

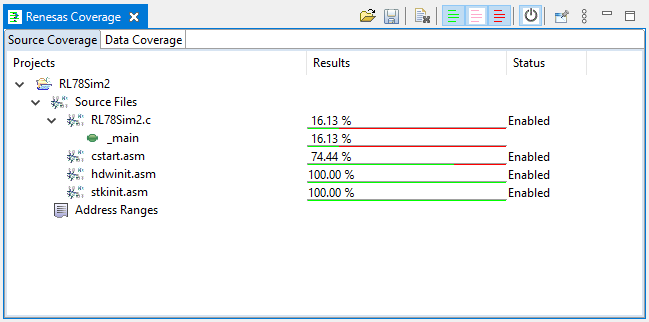

Improve Coverage view to show coverage result for .asm file
Coverage view now will support for disassembly files (with extension .asm ).
You can add, delete,... this kind of file in the Coverage view or observe the Coverage result of it as a .c or .cpp source file.
Improve "New Welcome page features
4 / 4

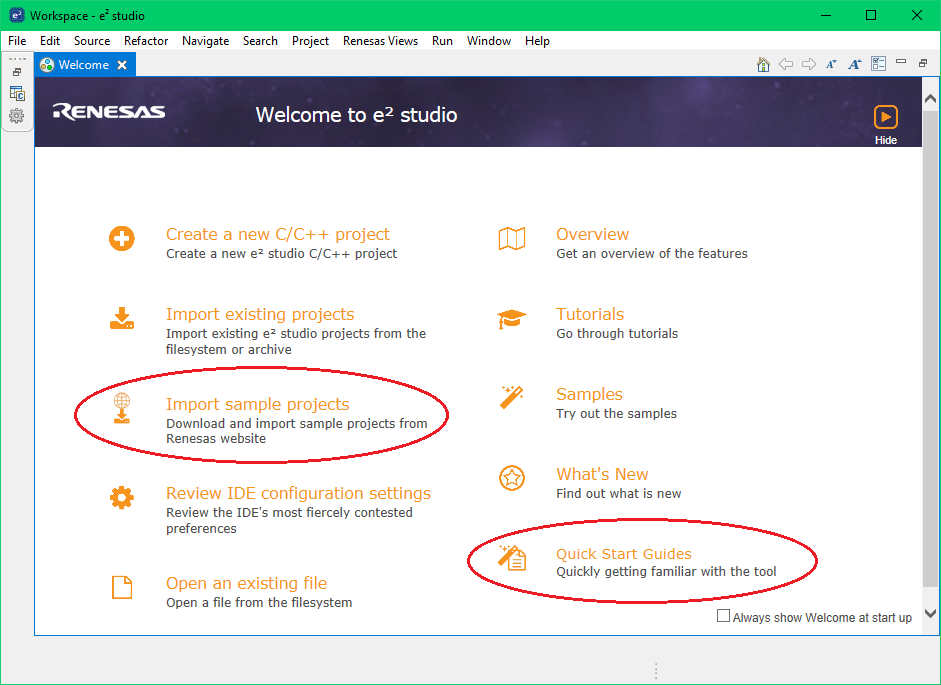

New Welcome page features
Quick start guide documents/videos and sample projects can be accessed directly from Welcome page of e2 studio.
By clicking "Import sample projects", an import wizard will be opened allow to search, download and import sample projects from Renesas website.
By clicking "Quick Start Guides", a new page will be opened listing useful documents/videos for each installed device family.
